Bent Plate
Line Card

Products

Master coil through finished trim — everything roll-formed and bent in-house.

Master Coils

Full Mill Prime Coil

Primarily 50 KSI HSLA HD Galvanized G60 and G90, full mill prime, from .033″ minimum to .138″ thick — on the floor and ready to slit for quick delivery.

Miscellaneous coil storage
Miscellaneous Coil

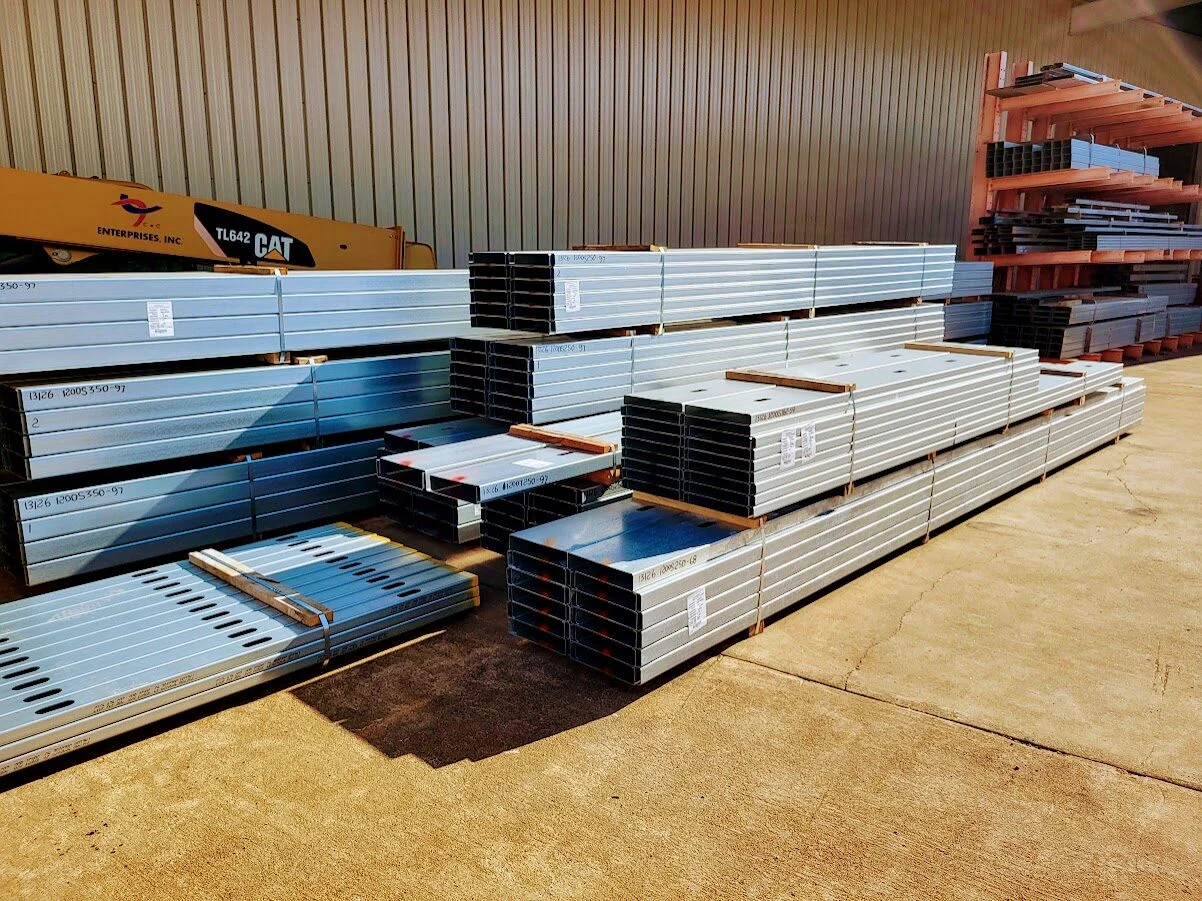

Structural stud and track bundles
Structural Stud and Track

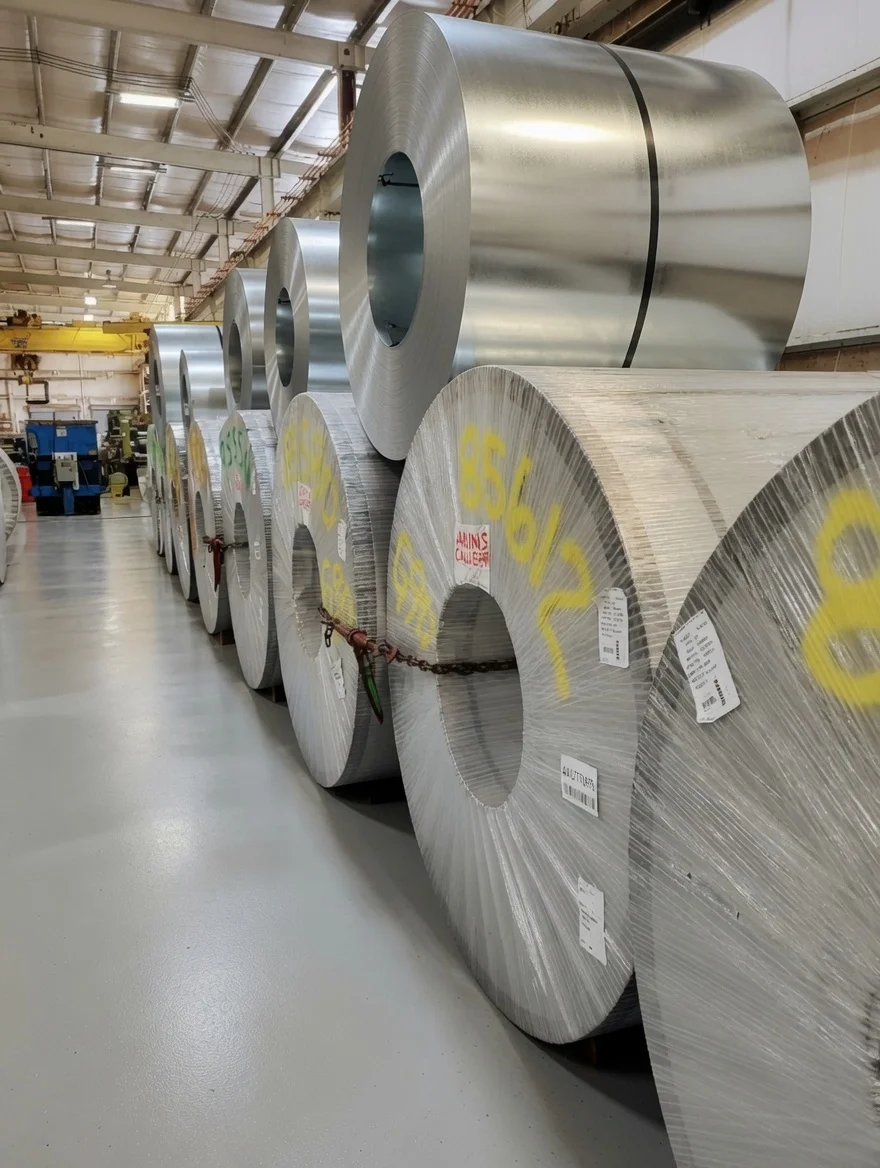

Master coil storage aisle
Master Coils

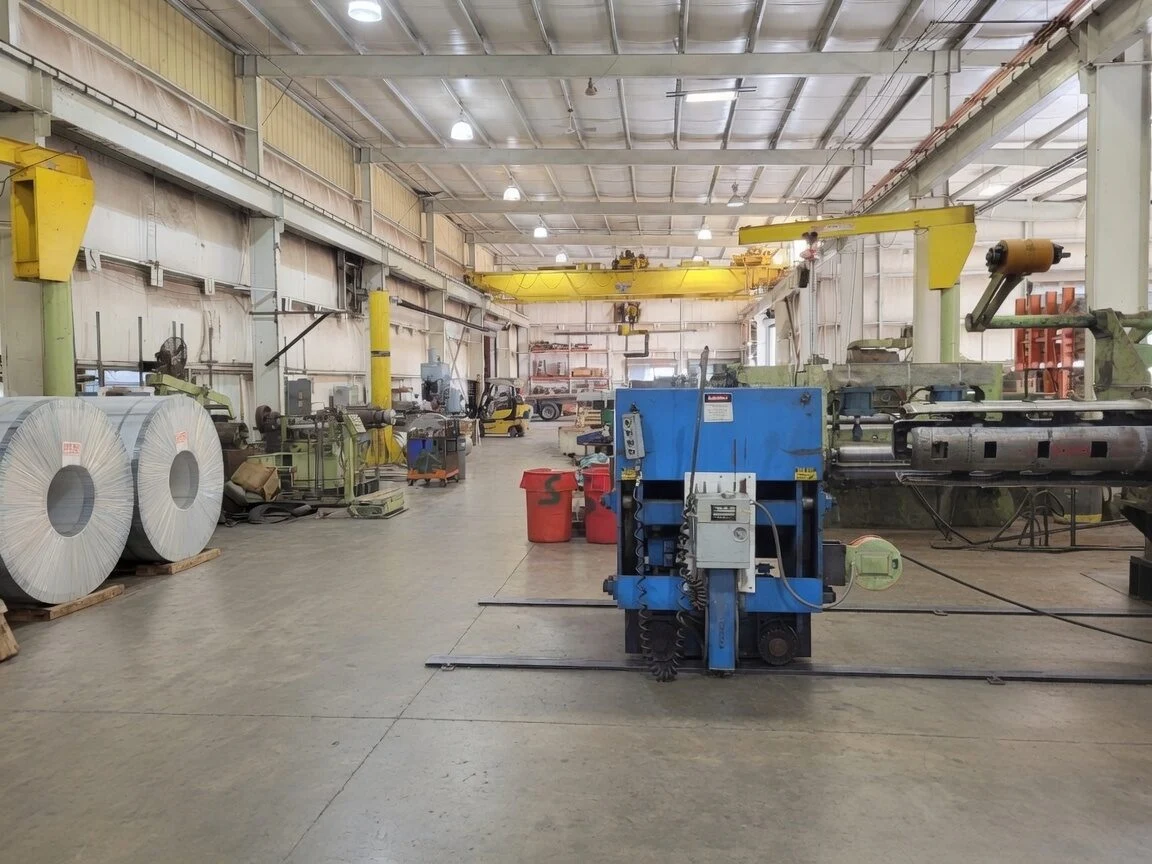

Slitting floor interior
Slitting Floor

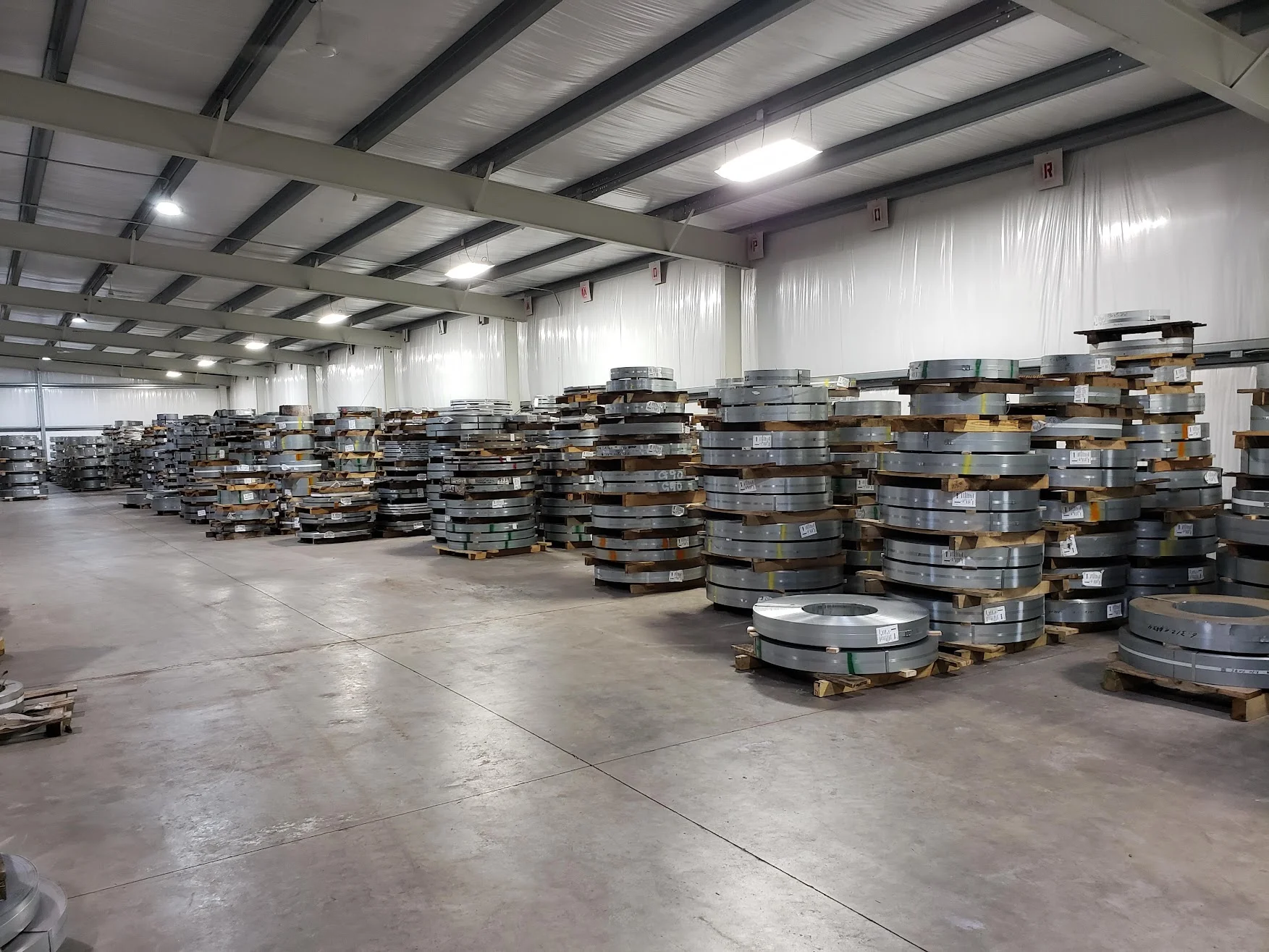

Slit coil racking
Slit Coil

Delivered to Manufacturers Across the Southeast

All products are full mill prime metal with certifications for chemical composition and mechanical properties. We offer quick turnaround and dependable quality, backed by 40 years of service.

Roll Forming

Studs, Track, Purlins & Angles

Structural studs ranging from 20 to 12 gauge, webs sized from 1.625″ to 15.50″, flanges between 1.625″ and 5.00″, available punched or unpunched. Purlins (Cees and Zees) run up to 10 gauge. Material includes HRPO, CRS, and galvanized steel. Primary markets: Affordable Housing / Builders, Construction, Roofing, and the Truss industry.

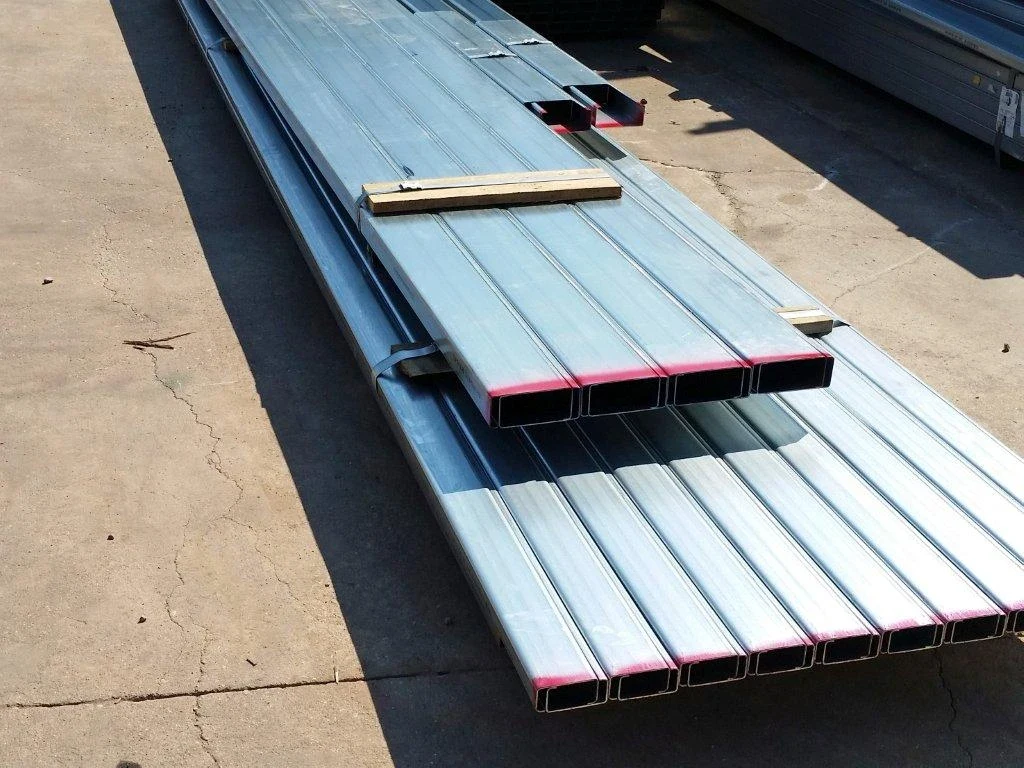

Structural studs
Structural Studs

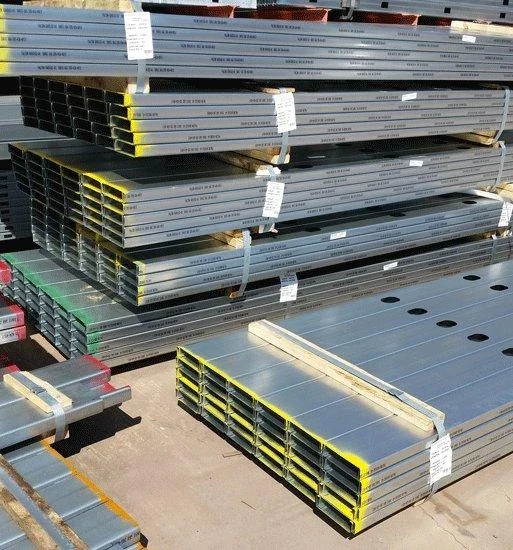

Studs and track
Studs and Track

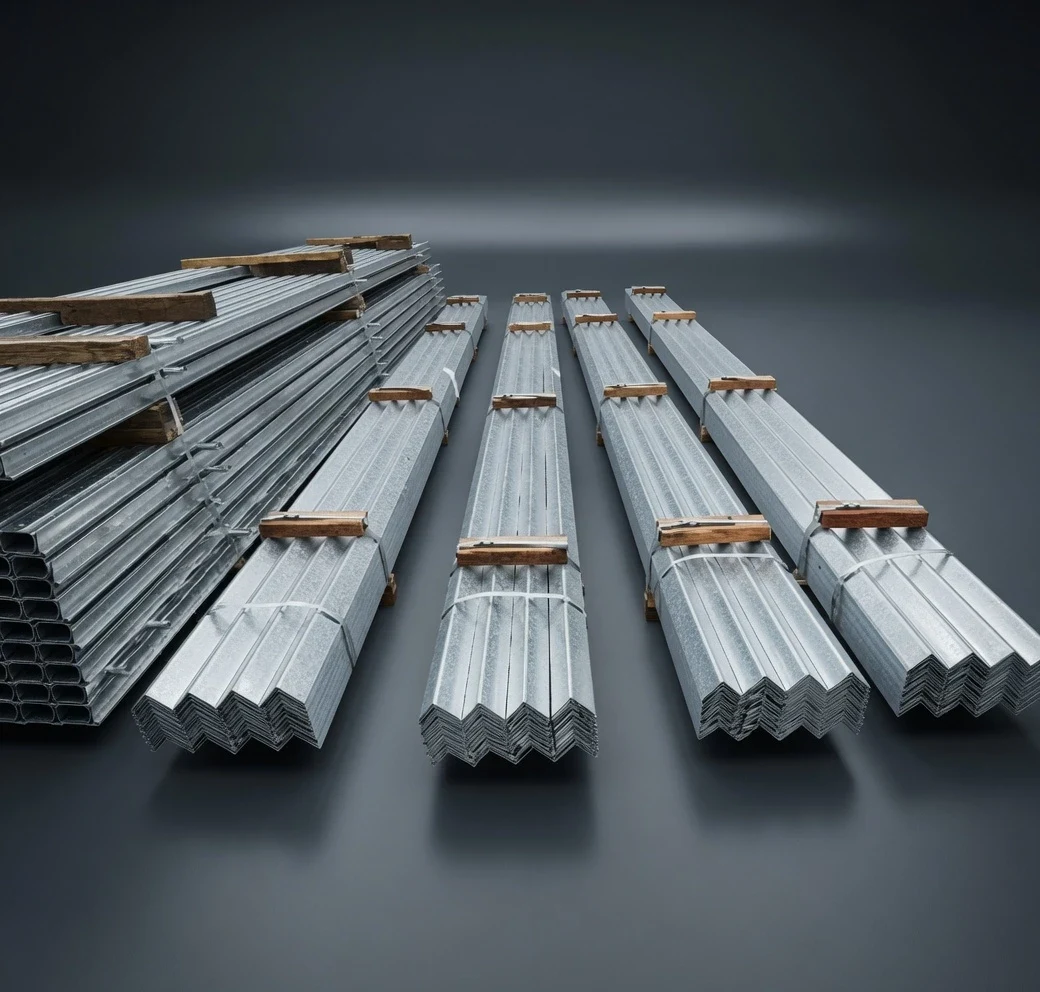

Angle stock
Angle

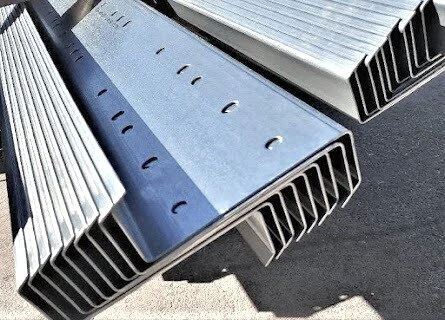

Z purlins
Z Purlins
Hat Channel

Roll Formed to Six Standard Sizes

Roll formed in-house. We can also custom bend hat channel up to 21 feet long. Available in 20, 18, or 16 gauge, G60 or G90 coating, 33 KSI or 50 KSI material.

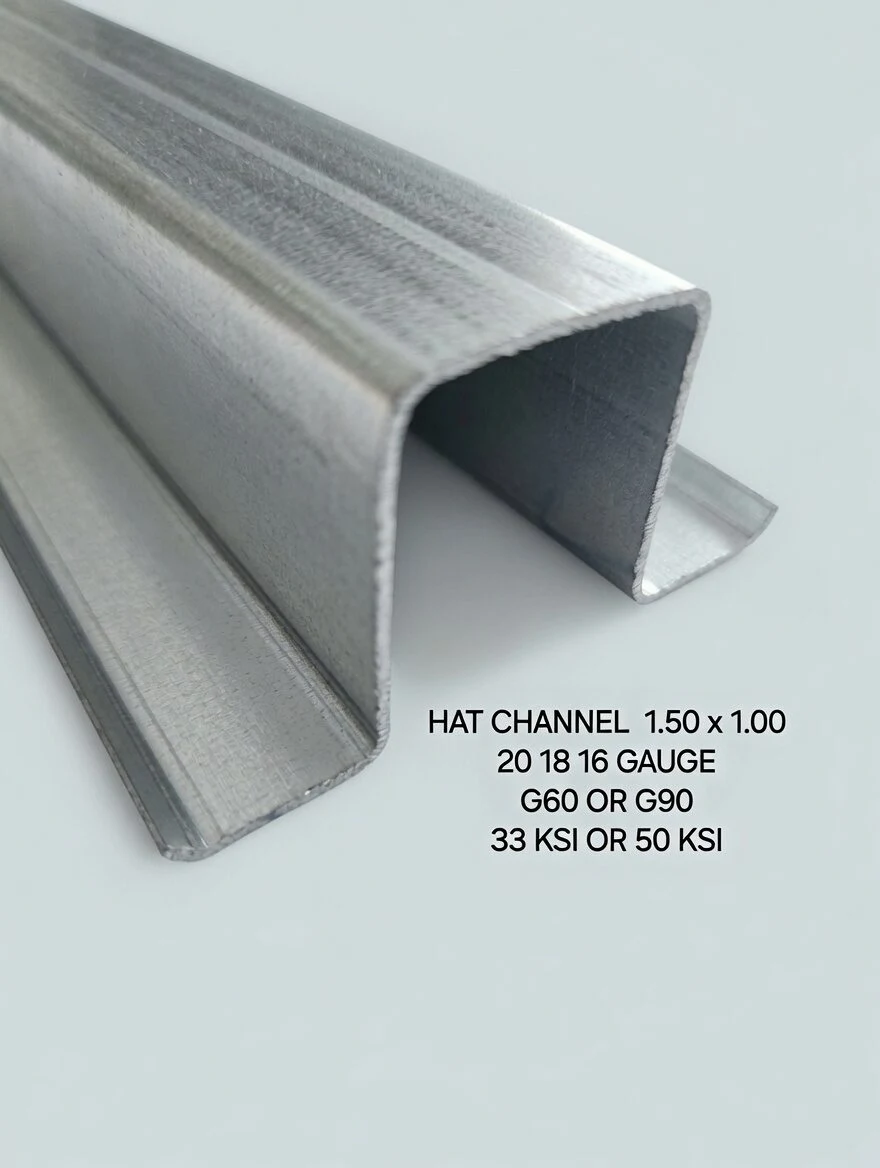

Hat Channel 1.50 x 1.00
1.50″ × 1.00″
20 / 18 / 16 GA · G60 or G90 · 33 or 50 KSI

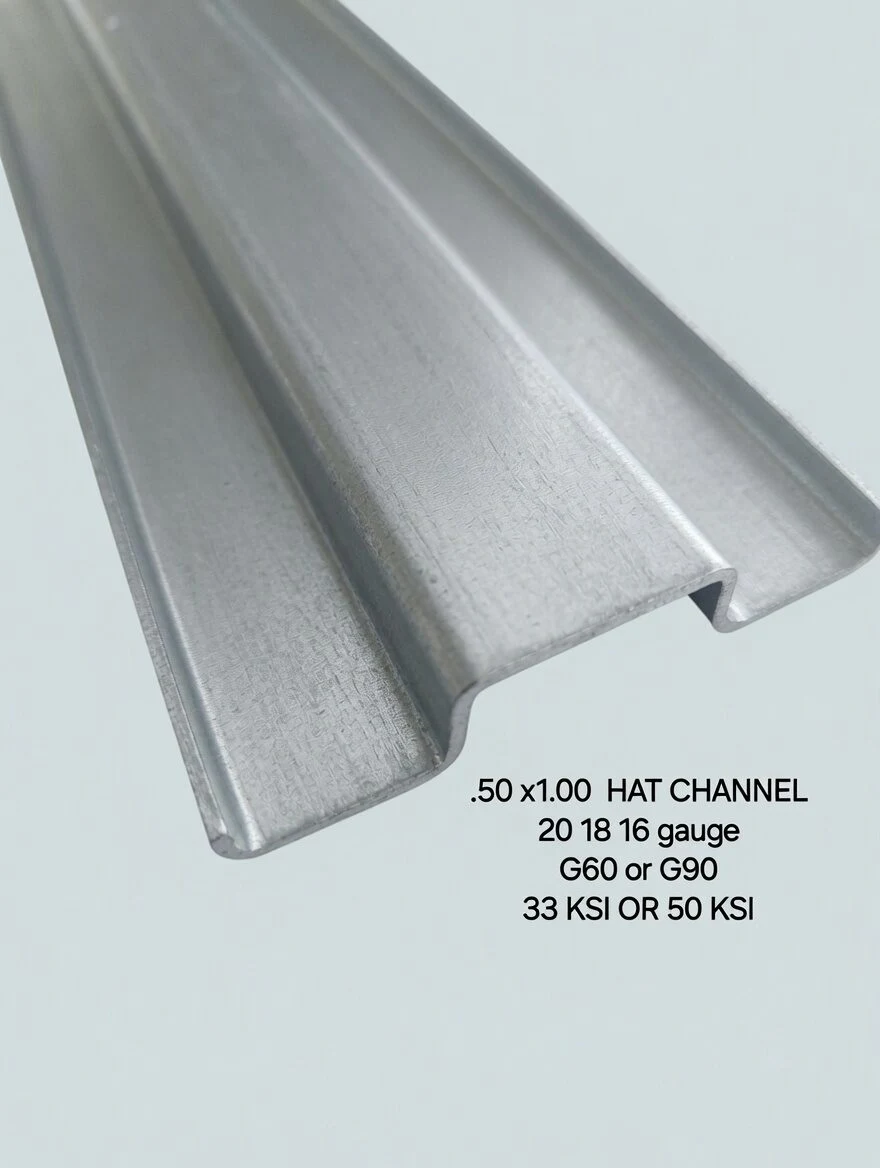

Hat Channel .50 x 1.00
.50″ × 1.00″
20 / 18 / 16 GA · G60 or G90 · 33 or 50 KSI

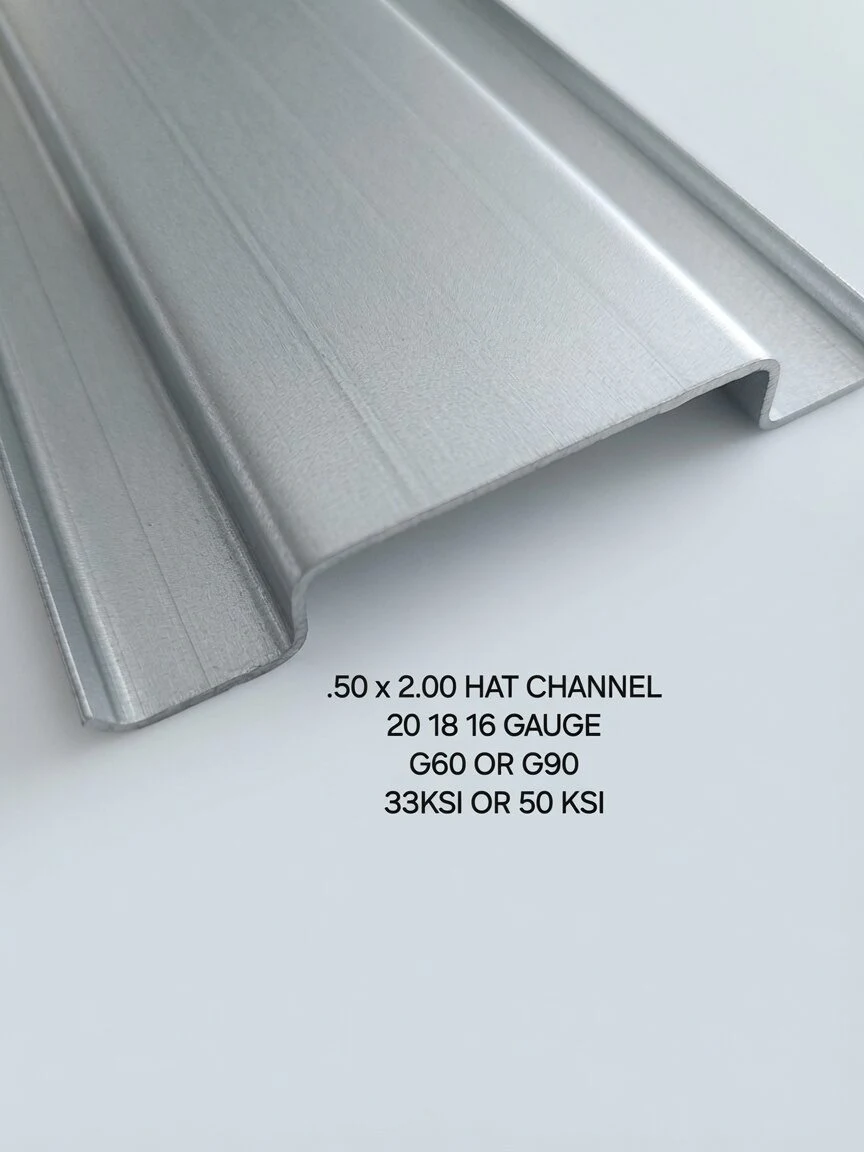

Hat Channel .50 x 2.00
.50″ × 2.00″
20 / 18 / 16 GA · G60 or G90 · 33 or 50 KSI

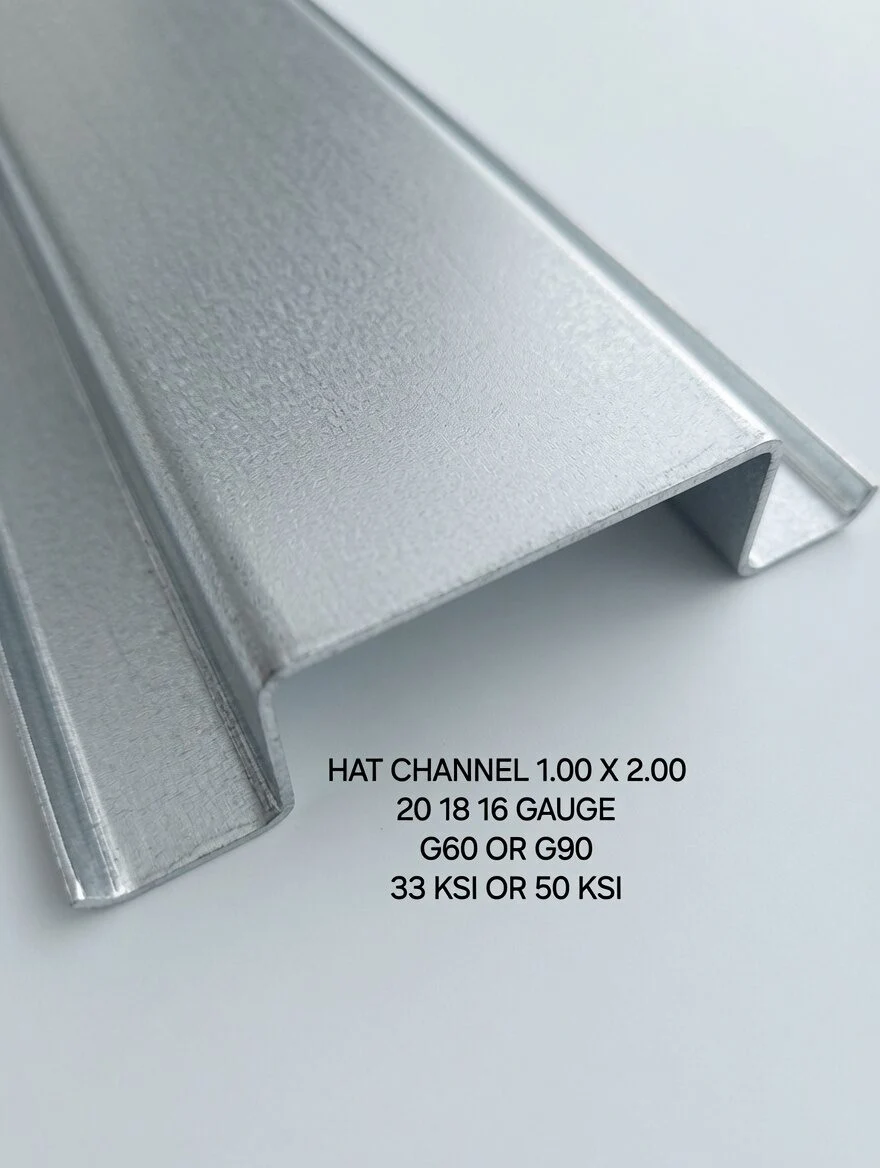

Hat Channel 1.00 x 2.00
1.00″ × 2.00″
20 / 18 / 16 GA · G60 or G90 · 33 or 50 KSI

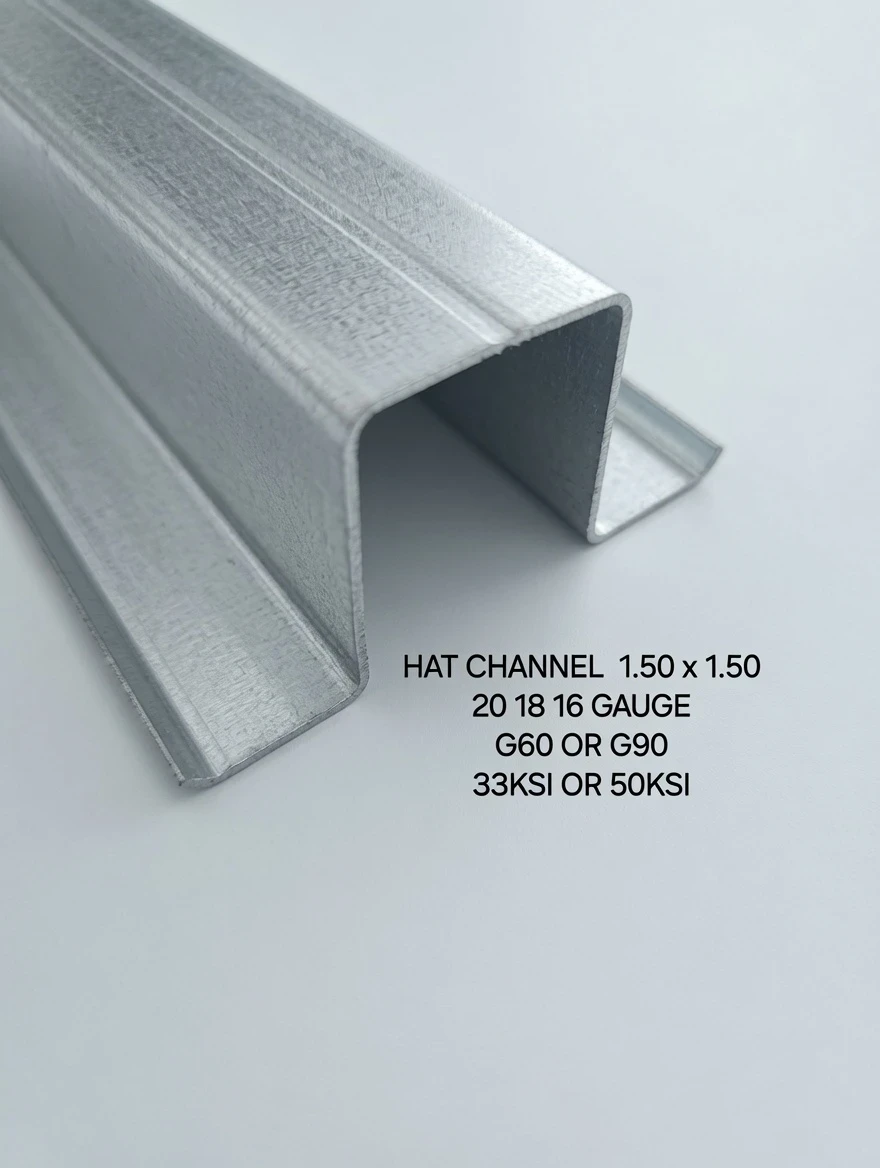

Hat Channel 1.50 x 1.50
1.50″ × 1.50″
20 / 18 / 16 GA · G60 or G90 · 33 or 50 KSI

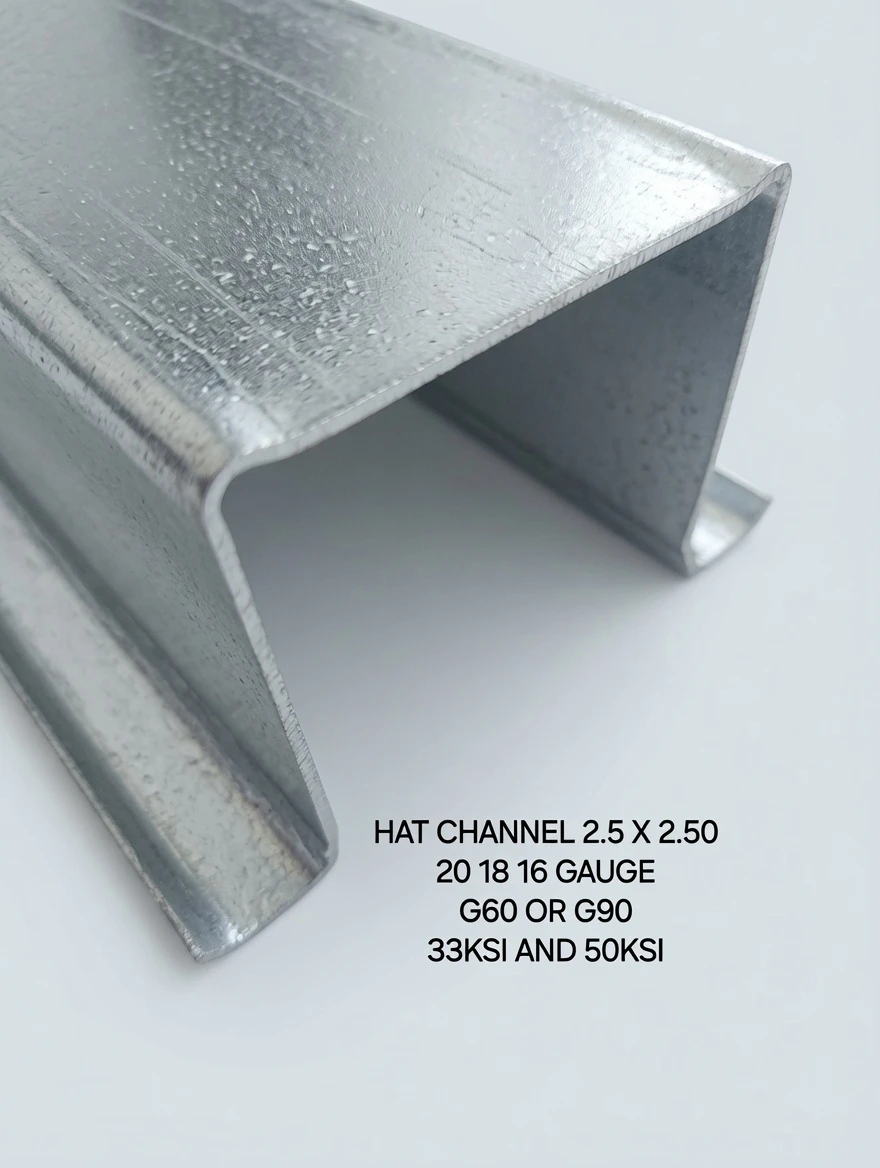

Hat Channel 2.5 x 2.50
2.5″ × 2.50″
20 / 18 / 16 GA · G60 or G90 · 33 & 50 KSI
Full hat channel profile lineup
Furring Channel

Two Standard Sizes

20, 18, or 16 gauge, G60 or G90 coating, 33 KSI or 50 KSI material.

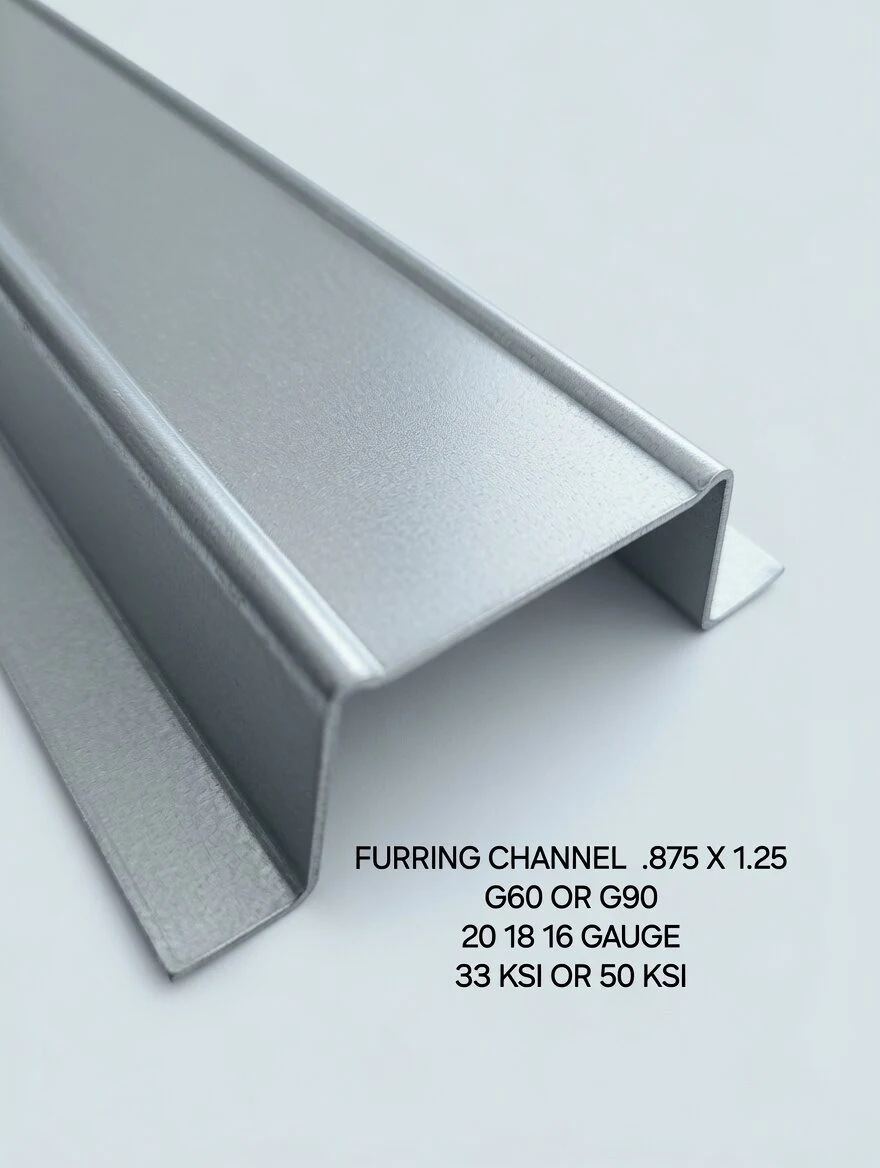

Furring Channel .875 x 1.25
.875″ × 1.25″
20 / 18 / 16 GA · G60 or G90 · 33 or 50 KSI

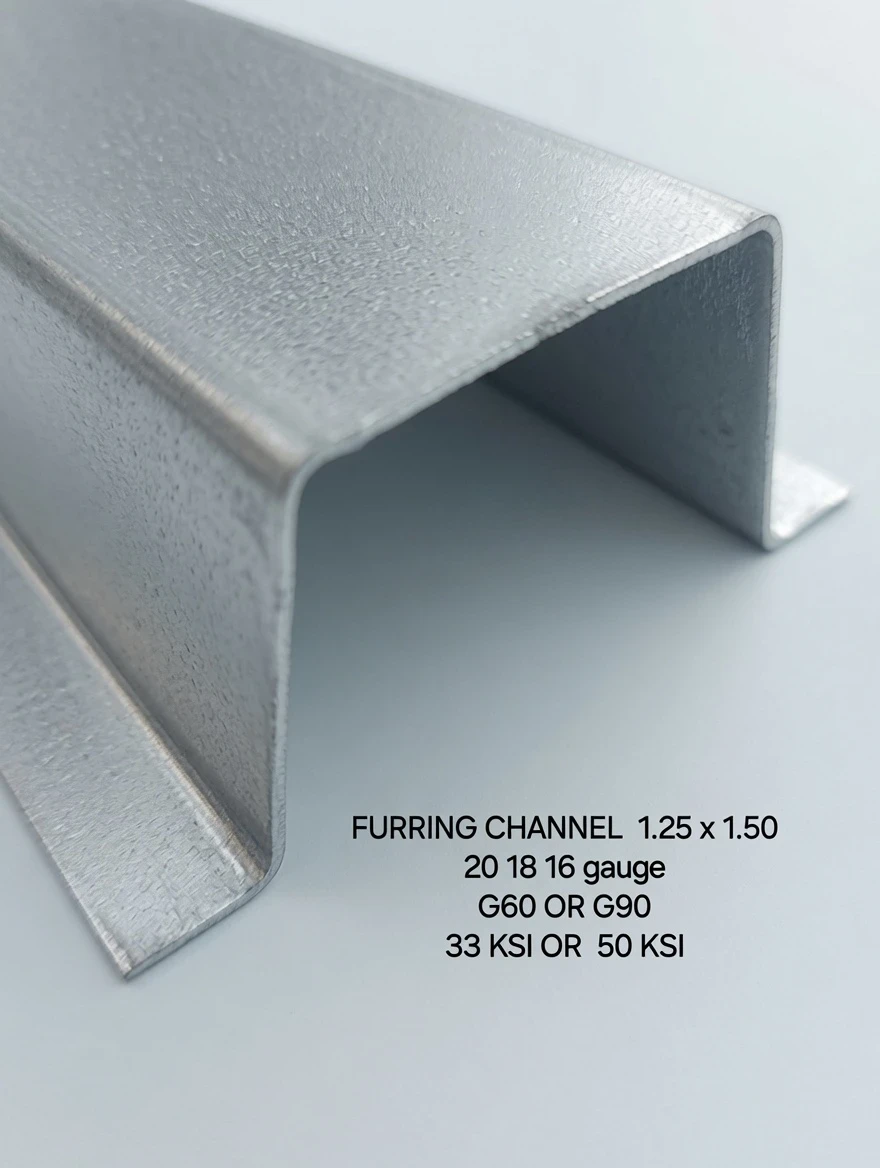

Furring Channel 1.25 x 1.50
1.25″ × 1.50″
20 / 18 / 16 GA · G60 or G90 · 33 or 50 KSI
Standard Shapes

Bent Plate & Angles

20 gauge to 10 gauge, up to 21 feet long.

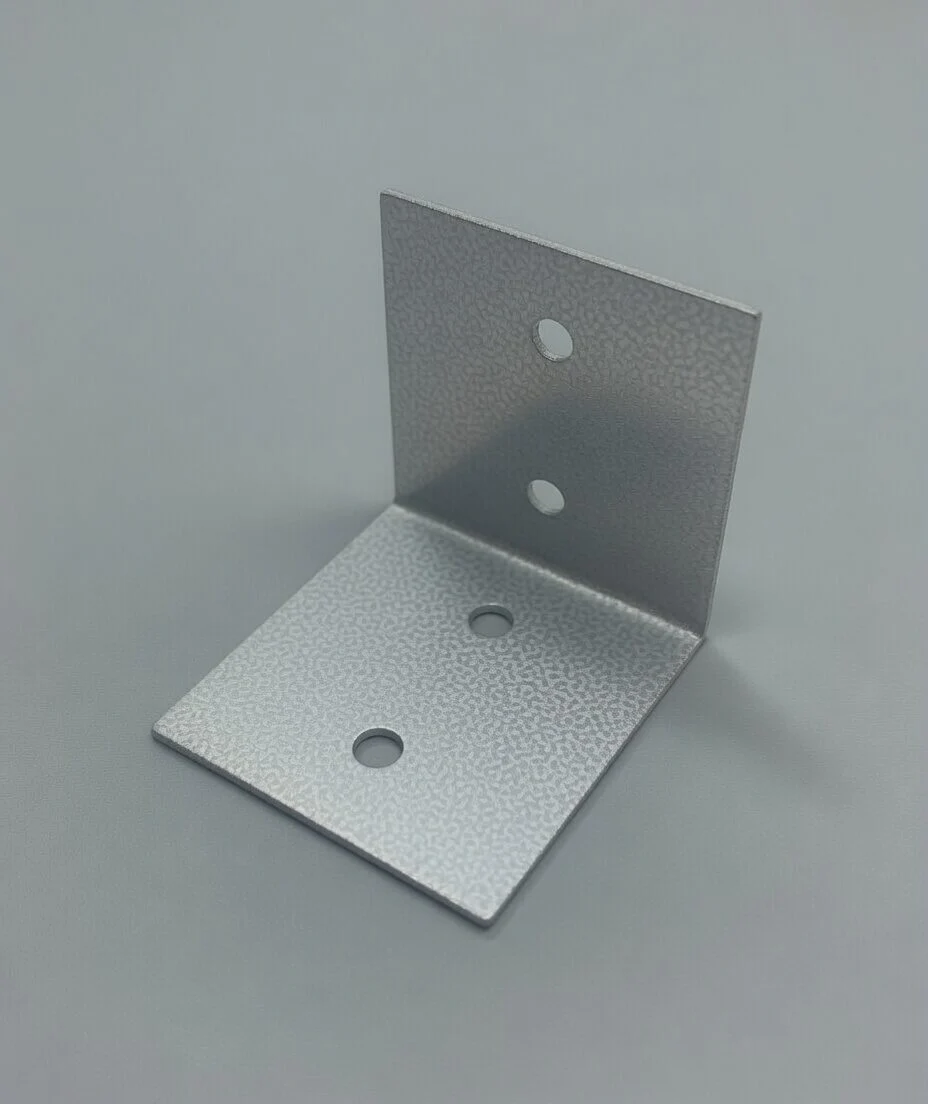

Angle clip 2x2x2
Angle Clip

2″ × 2″ × 2″

Angle stock bundle

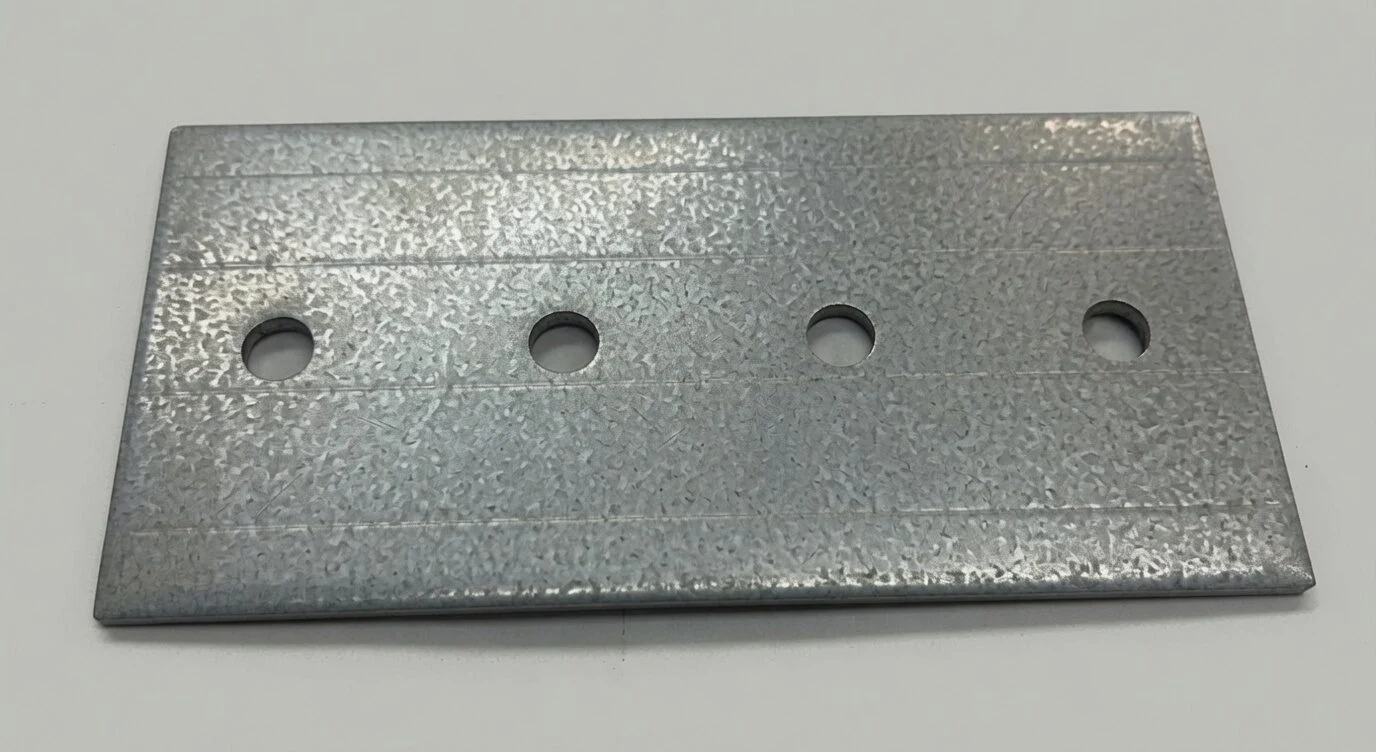

Splice Plate

4-Hole

Angle stock
Angle Stock

Yard Bundles

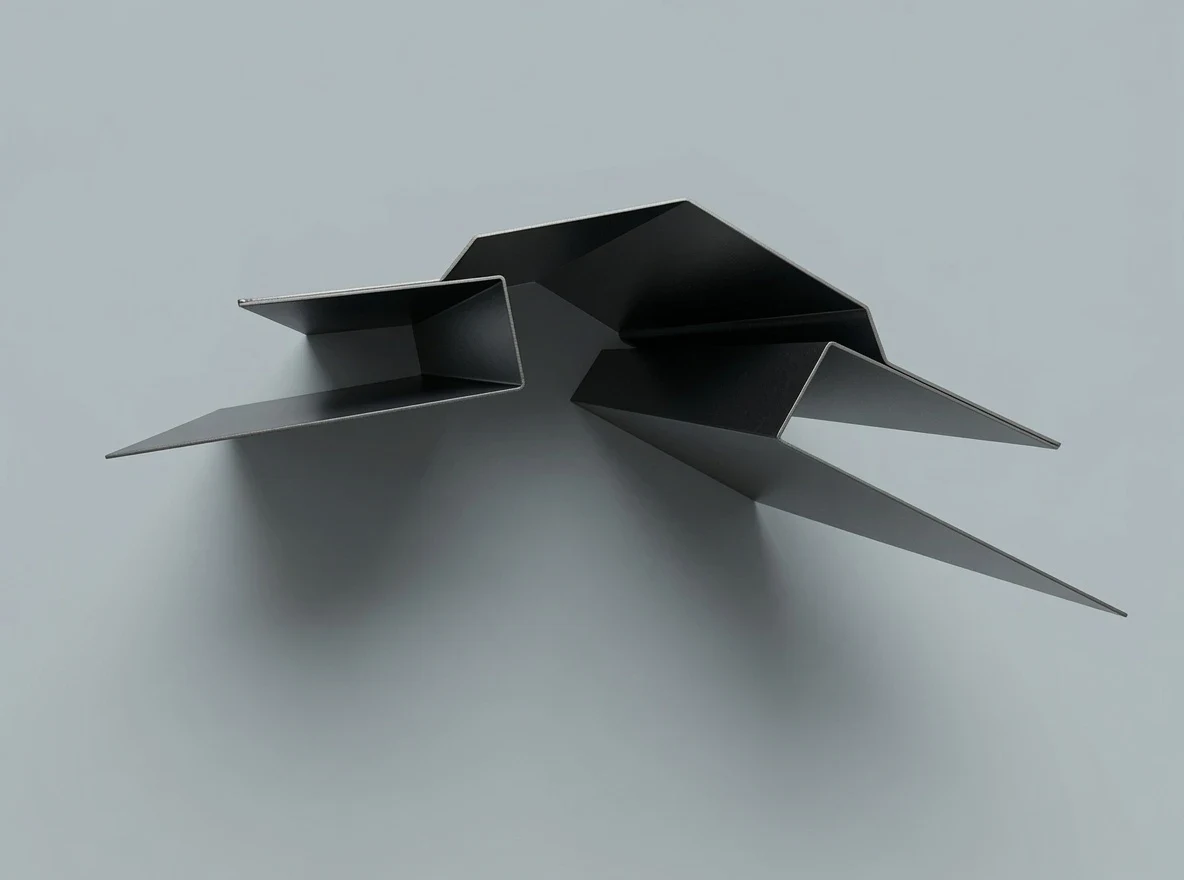

Ridge vent profile
Bent Channel

Custom Sizes

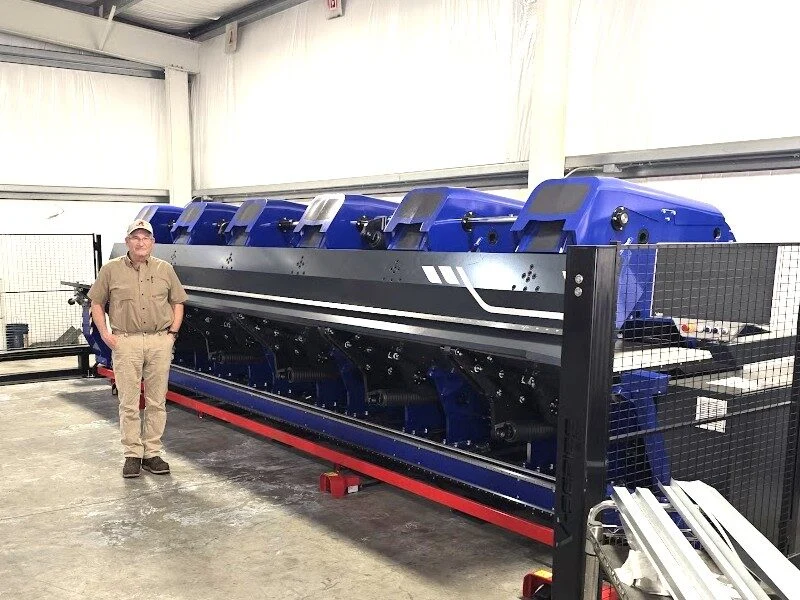

ASCO Variobend V2.5 operator
Custom Shapes — 20 to 12 Gauge

The ASCO Variobend V2.5

Our advanced all-electric double bender forms parts up to 21 feet long from 26 to 12 gauge (50 KSI material), producing trim for roofing like ridge guards, gravel stops, and ridge caps. We offer seamless options up to 21 feet, and the Variobend also creates seamless fascia for architectural projects.

300° of free space geometry handles complex profiles: eaves, rake, gable trim, facia and drip edges, custom valley and hip flashing, ridge caps and transitions, coping, counter-flashing, wall/curb/chimney details, penetrating flashings, soffits, facia wraps, and complex bent closures.

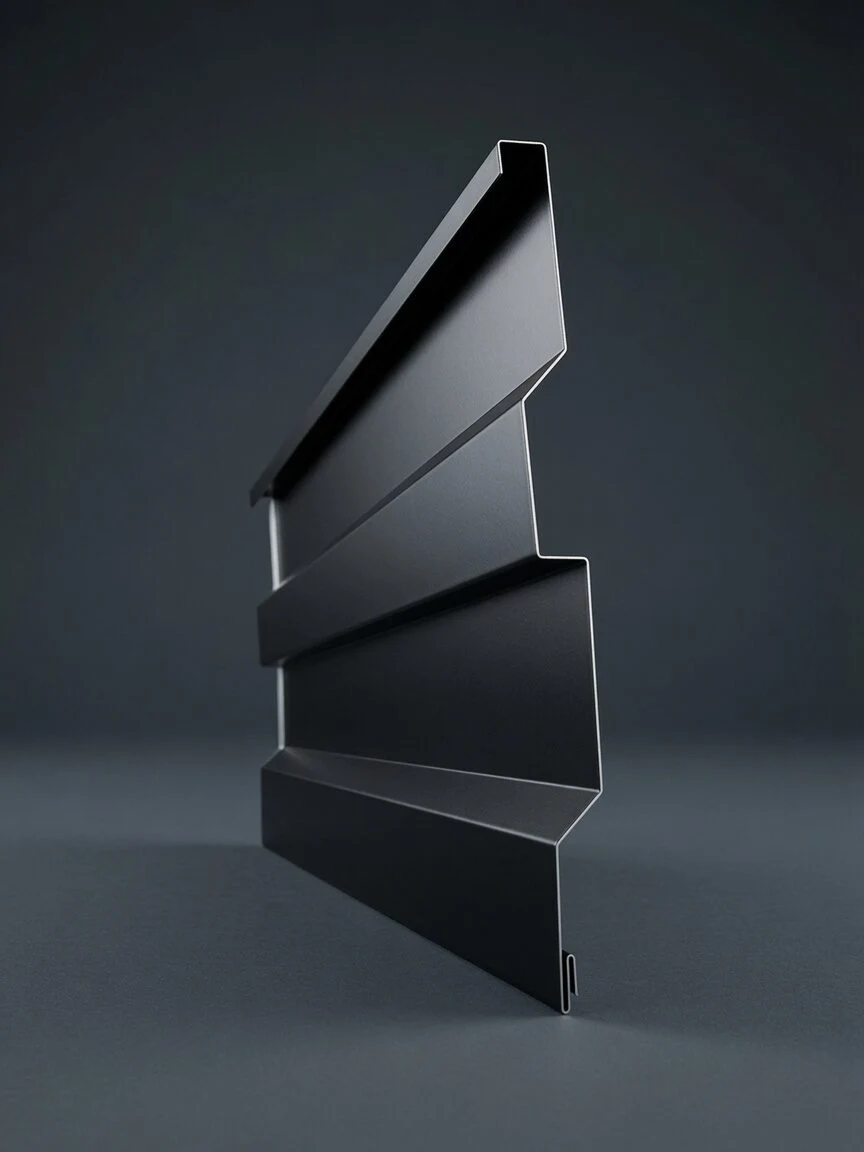

Custom fascia profile
Custom angular trim profile

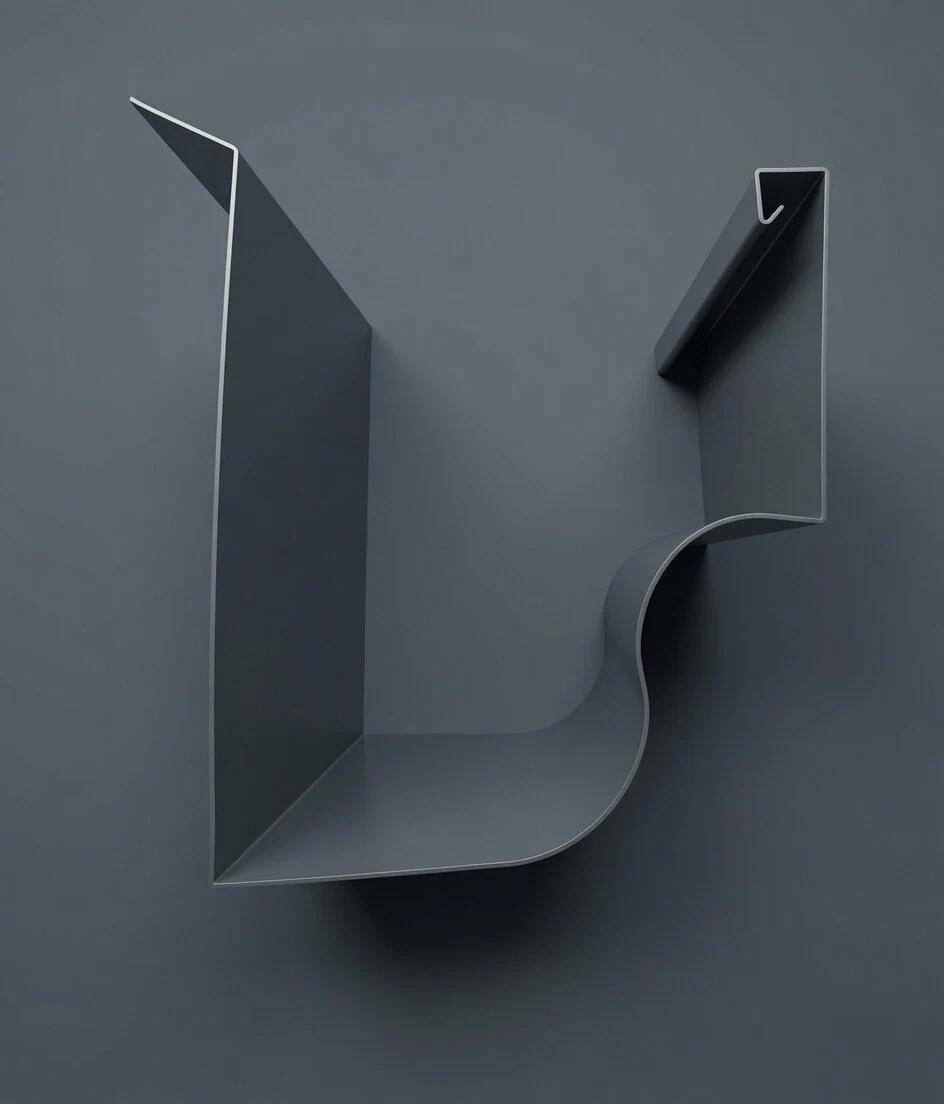

Custom hook trim profile

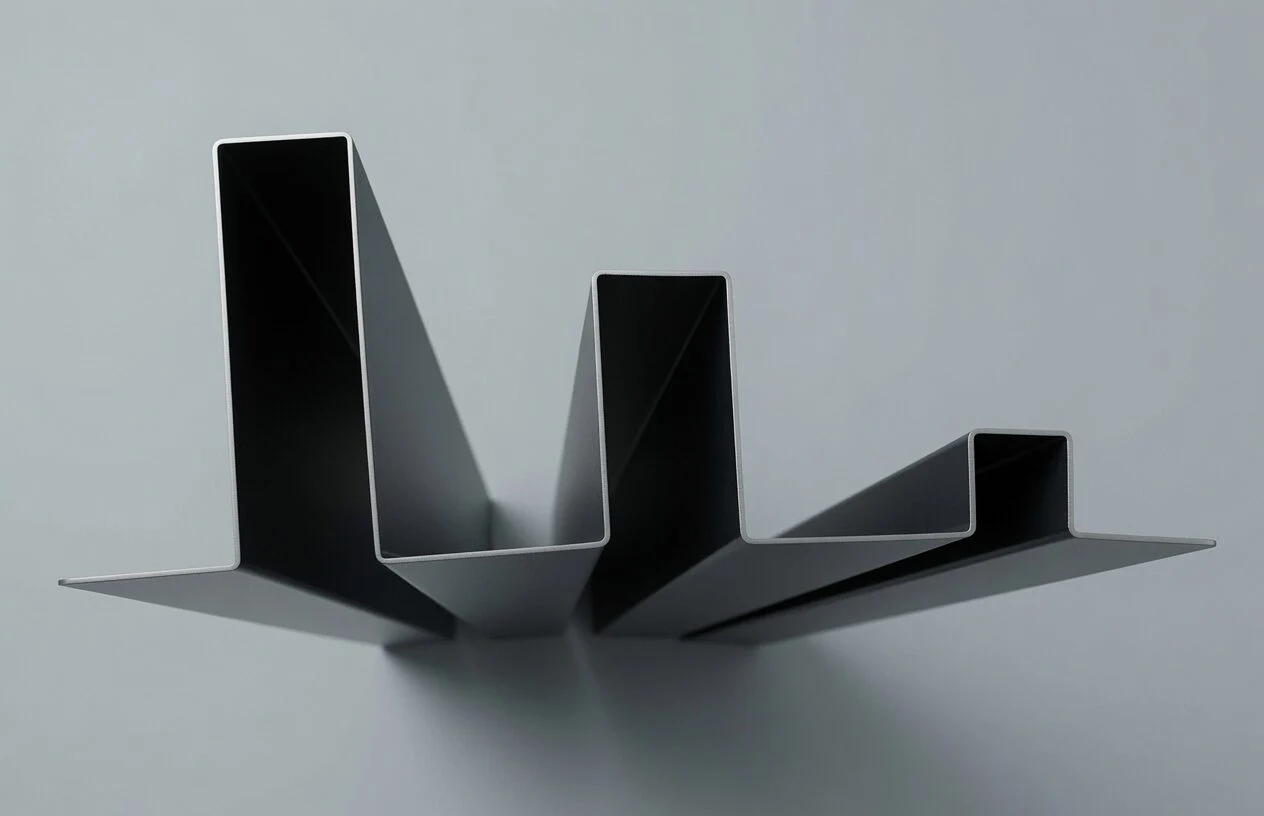

Custom W trim profile

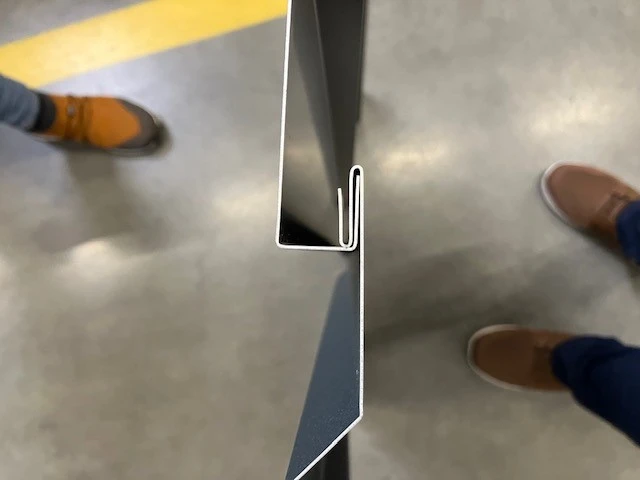

Interlocking custom profile

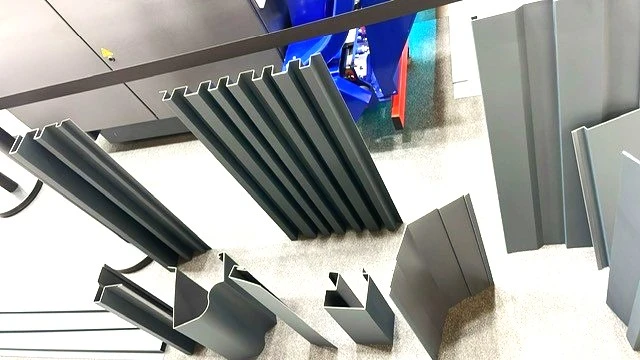

ASCO V2.5 profiles

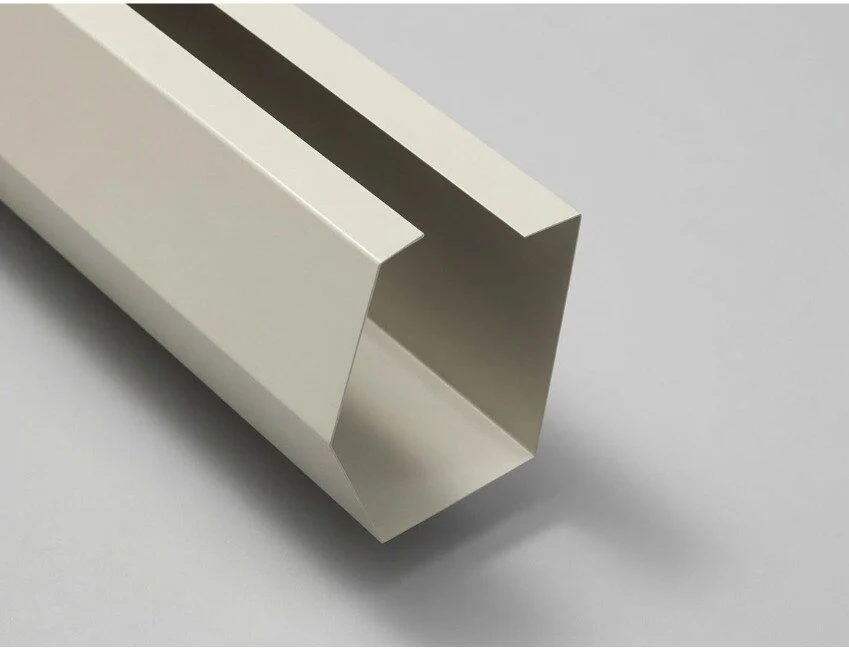

Gutter downspout profile

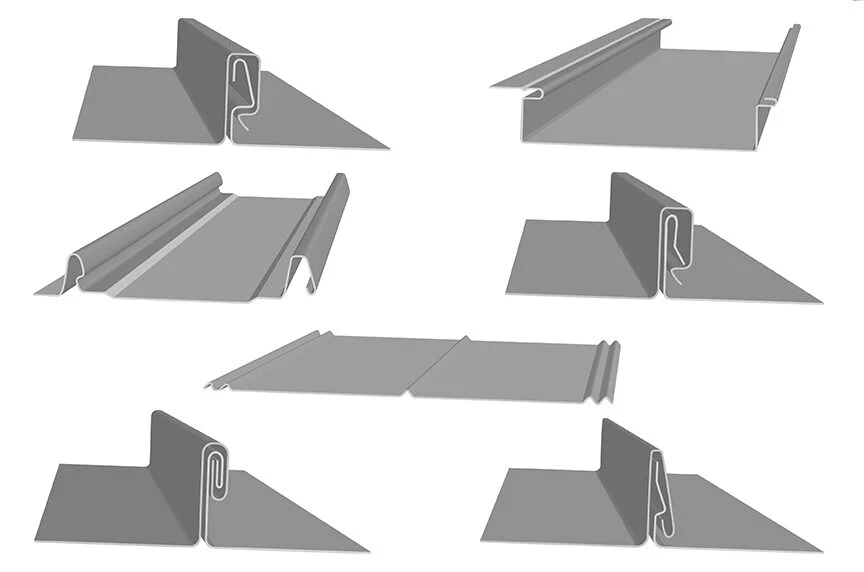

Panel profile reference diagram
Wall Panels & Standing Seam Roofing Trim

RW-9 36, Dynarib & Shadow Wall Panel

Falcon runs a large commercial line to produce the RW-9 36 wall panel, plus the Dynarib and Shadow wall panels. Falcon is the exclusive producer of these panels — there are thousands of buildings across the USA and Canada using them. It's one of the straightest panels in the industry, doesn't oil-can once installed, and fasteners tuck in between the nine-inch panels.

Bradbury Mill
Bradbury Mill
Exposed fastener, exclusive to Falcon

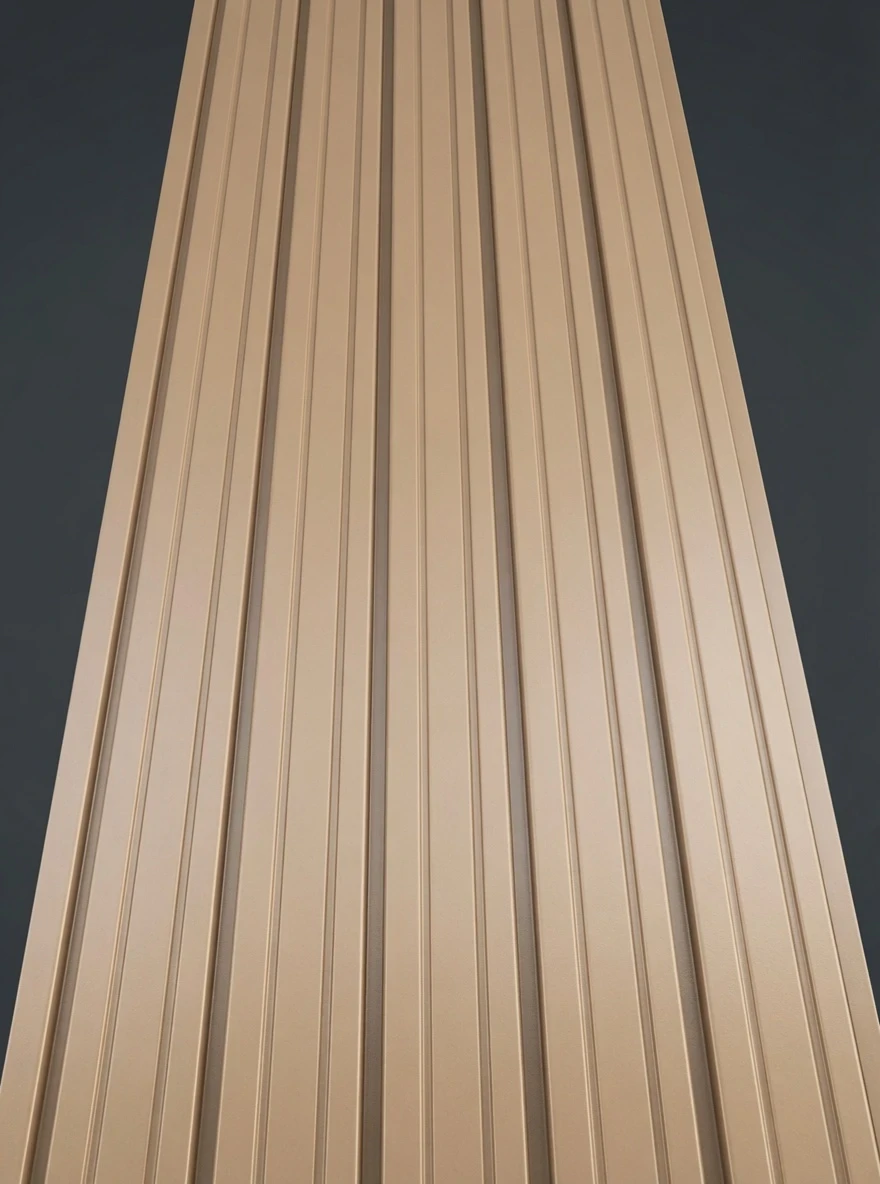

RW-9 36 wall panel
RW-9 36
Made on our New Tech Machine

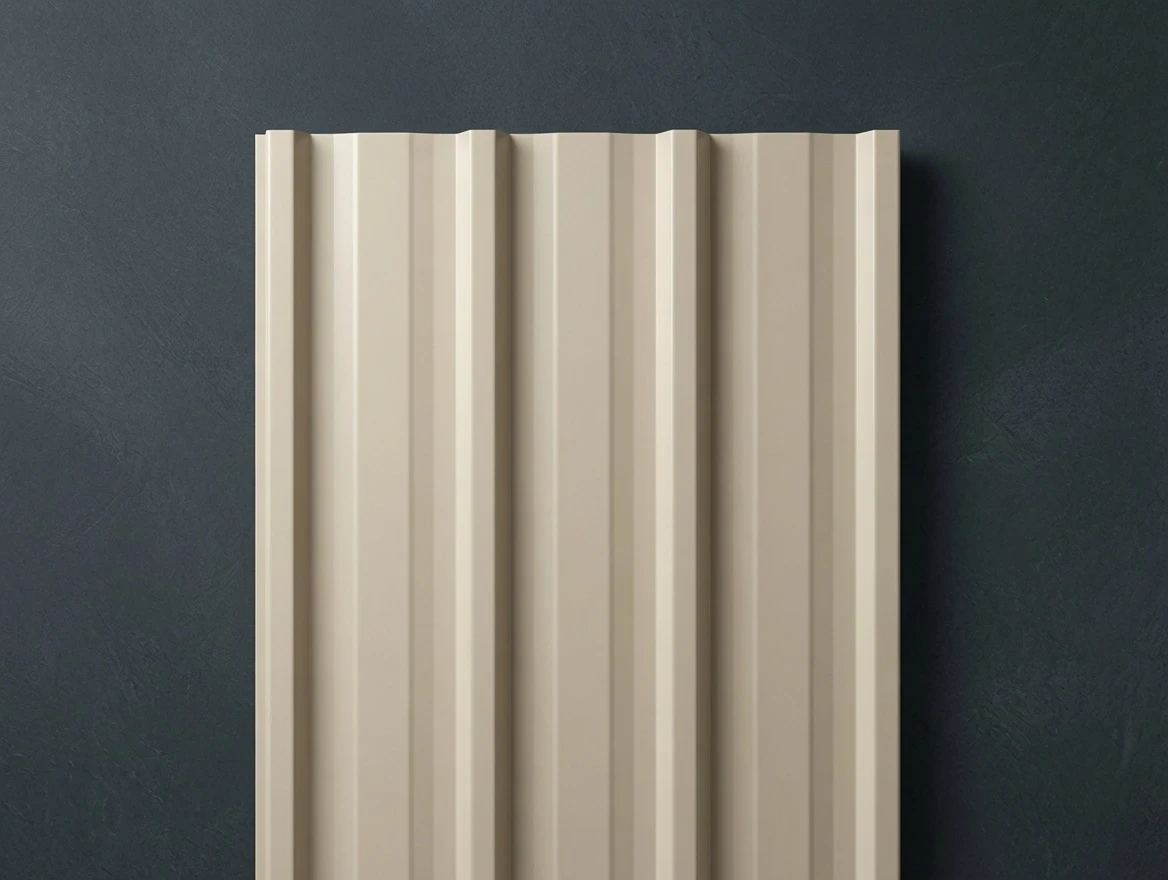

DynaRib 36 and Shadow wall panel
DynaRib 36 & Shadow Wall Panel
Multiple panel options
Colors & Materials

Your Finish, Your Way

Valspar SMP paint system for lasting durability, dozens of standard colors plus custom color matching. Galvanized, galvalume, and painted steel available in 26 through 24 gauge. All colors are Energy Star® certified.

Silicone Polyester — SMP
Polar White PPOL*
Light Stone
Ash Gray
Desert Sand
Charcoal Gray
Burnished Slate
Saddle Tan
Hawaiian Blue
Rustic Red
Fern Green
Solar White
Koko Brown
Evergreen
Aztec Gold
Crimson Red
Colony Green
Fluoropolymer Kynar 500®
Regal Red
Gallery Blue
Medium Bronze
Snow White
Slate Gray
Almond
Classic Green
Brownstone
Colonial Red
Bone White
Midnight Bronze

These color samples are as close as possible to the actual colors offered within the limitations of color-chip reproduction. *Polar White is a premium polyester product (PPOL), not an SMP.

Need a Quote on Any of These?

Send specs, drawings, or quantities and we'll get back to you fast.
